Engineering Job Works
Some of the Jobs, executed by us.

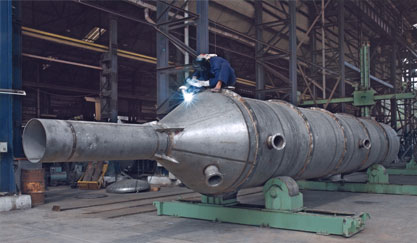

1/11000/2400 EXTRACTOR
MOC: SA240-GR304 & IS 2062
OVERALL LENGTH: 11000 OD X 2400 LG
WEIGHT: 90 TONS.
OVERALL LENGTH: 11000 OD X 2400 LG
WEIGHT: 90 TONS.
C-301 FIXED AMMONIA STILL
MOC: SA240-GR304 & IS 2062
OVERALL LENGTH: 11000 OD X 2400 LG
WEIGHT: 90 TONS.
OVERALL LENGTH: 11000 OD X 2400 LG
WEIGHT: 90 TONS.
C-601 GAS SCRUBBER
MOC: SA 240 GR. 316L
OVERALL LENGTH: 16.06 MTRS
WEIGHT: 25.2 TONS
OVERALL LENGTH: 16.06 MTRS
WEIGHT: 25.2 TONS
S-203 WET ESP (HONEY COMB ASSEMBLY)
MOC: SA 240 GR. 316L
OVERALL LENGTH: 6.0 MTRS
WEIGHT: 5.924 TONS
OVERALL LENGTH: 6.0 MTRS
WEIGHT: 5.924 TONS
E-1243/44 TUBULAR AIR PREHEATER
MOC: IS 2062 GR. B
OVERALL LENGTH: 6.2 X 6.0 X 2.85 MTRS
WEIGHT: 35 TONS
OVERALL LENGTH: 6.2 X 6.0 X 2.85 MTRS
WEIGHT: 35 TONS
HOT OIL SURGE DRUM
MOC: SA 516 GR. 70
OVERALL LENGTH: 4600 ID X 25.8 MTRS LG
WEIGHT: 53 TONS
OVERALL LENGTH: 4600 ID X 25.8 MTRS LG
WEIGHT: 53 TONS
STAR CRYSTALLISER
MOC: IS-2062 / SA 240 TP 304 INTERNAL
OVERALL LENGTH: 2800 ID X 3090 W X 6020 LG
WEIGHT: 8.5 TONS
OVERALL LENGTH: 2800 ID X 3090 W X 6020 LG
WEIGHT: 8.5 TONS
DESOLVENTIZER / STRIPPER / COOLER
MOC: SA 516 GR. 70
OVERALL LENGTH: 2500 ID X 3000 W X 10000 LG
WEIGHT: 12.75 TONS
OVERALL LENGTH: 2500 ID X 3000 W X 10000 LG
WEIGHT: 12.75 TONS
R-01 CRYSTALLIZER
MOC: IS-2062 / SS-304 INTERNAL
OVERALL LENGTH: 2520 ID X 2900 W X 7170 LG
OVERALL LENGTH: 2520 ID X 2900 W X 7170 LG
ROUND SILOS -70M3 (8 NOS)
MOC: SS-304
OVERALL LENGTH: 3800 ID X 4500 W X 8600 LG
WEIGHT: 8.57 TONS
OVERALL LENGTH: 3800 ID X 4500 W X 8600 LG
WEIGHT: 8.57 TONS
FATTY ACID DISTILLATION COLUMN
MOC: SA 240 TP 316
OVERALL LENGTH: 2320 X 2320 X 12767 MTR LG
WEIGHT: 6.4 TONS
OVERALL LENGTH: 2320 X 2320 X 12767 MTR LG
WEIGHT: 6.4 TONS
FATS SPLITTING TOWER
MOC: SA 240 TP 316
OVERALL LENGTH: 973 X 1625 X 27400 LG
WEIGHT: 14.15 TONS
OVERALL LENGTH: 973 X 1625 X 27400 LG
WEIGHT: 14.15 TONS
HEAT EXCHANGER (TUBE BUNDLE)
MOC: A 105 , TUBE – SA 179
OVERALL LENGTH: 6175 LG
WEIGHT: 1.3 TONS
OVERALL LENGTH: 6175 LG
WEIGHT: 1.3 TONS
